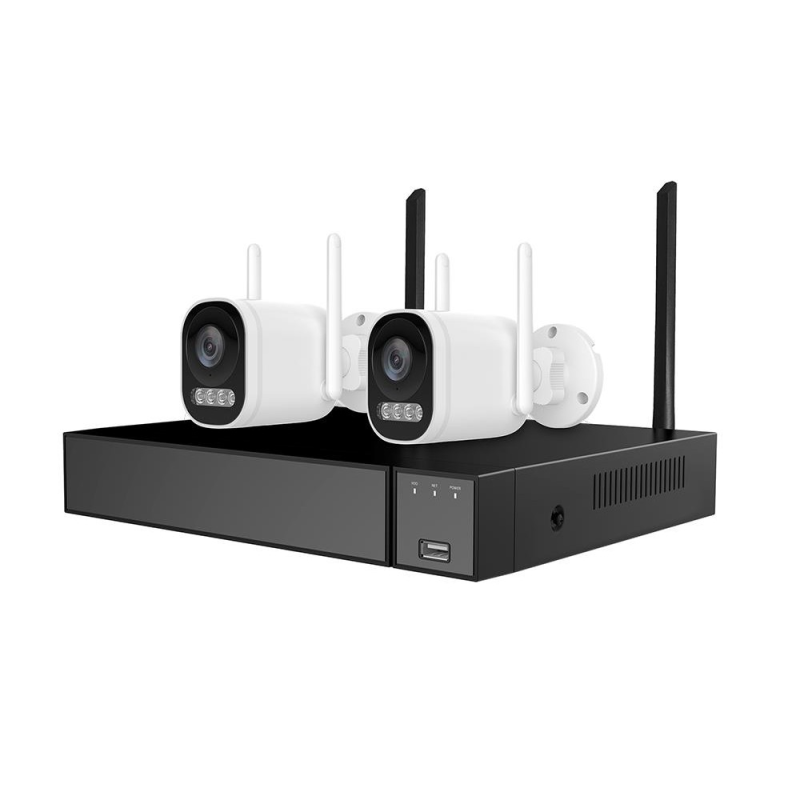

LONGSE LW5MC82B2 WIFI KIT NVR: 1X LW08C + WIFI IPC: 2 X LW2B2, 5MP

• Το καταγραφικό μπορεί να δεχτεί συνολικά 8 κάμερες, 2 Wifi και 6 IP. Ο αριθμός των wifi είναι σταθερός και δεν μπορεί να αλλάξει.


  Package
  NVR	1x LW08C
  Camera	2 x LW5B2
  WIFI Range	No Obstacles 400m Max
  Cable	1 x 1m Net Cable
  Mouse	1xUSB 2.0 Mouse
  Adaptor	1xDC12V2A for NVR;2x12V1A for IPC
  Weight	2547.5g
  Camera Model	LW5B2
  Camera
  Image Sensor	GC4653 1/3"CMOS
  Resolution	5MP
  Compression	H.265
  TV System	PAL(default）
  Electronic Shutter Time	Auto: PAL 1/25-1/10000Sec
  S/N Ratio	≥52dB
  Scanning System	Progressive
  Video Output	Wireless network
  Reset Button	Yes
  LENS Type
  Focus Length	2.8mm F2.0
  Focus Control	Fixed
  Lens Type	Fixed
  Pixels	5M Pixels
  Night Vision
  Infrared LED	LED: 14µ x 12PCS + 30μ x 2PCS White light+1PCS Red warning light + 1PCS Blue warning ligh
  Infrared Distance	30M
  Fill light mode	Infrared / Full color / Smart
  Network
  Ethernet	N/A
  Protocol	Wi-Fi 802.11b/g/n
  ONVIF	N/A
  P2P	N/A
  POE	N/A
  Main Stream 1	2880*1620@15fps
  Sub Stream 1	768*432@15f ps
  IE Brower	N/A
  Smart Phone	N/A
  Wireless
  Antena	3dBi
  Hotspot	NO
  Wi-Fi	Wi-Fi(IEEE802.11b/g/n)
  WIFI Range	No obstacles 400m Max.
  Camera Features
  Day/Night	Color/ B&W (IR-CUT )
  Image Config	Saturation/Brightness/Contrast /Sharpness, Mirror
  Screen rotation	Rotate 90°/180°/270°
  ROI	N/A
  Defog Mode	N/A
  BLC	N/A
  HDR	N/A
  Intelligent detection	Human&Vehicle
  Motion Detection	Support
  Privacy Masking	3 Rectangular Zone
  Recording Mode	NVR
  Interface
  Audio	Built-in microphone /speaker
  Alarm	N/A
  SD Card Slot	N/A
  RS485	N/A
  General
  Housing	Plastics IP65
  Anti-cut Bracket	YES
  IR Cut Filter	YES
  Operation Temperature	-30℃ ~ +55℃ RH95% Max
  Storage Temperature	-20℃ ~ +55℃ RH95% Max
  Power Source	DC12V±10%, 1A
  Dimension	151.9*79.8*79(mm)
  Weight	0.34kg
  Model	LW08C
  System
  Main Processor	ARM Cortex A7 Processor
  Operating System	Embedded LINUX
  Video
  Input	8CH (8MP/5MP/4MP/3MP/2MP/960P/720P/D1)
  Output	1 VGA, 1 HD
  Audio
  Input	N/A
  Output	1*3.5mm audio interface
  Audio Bit Rate	64kbps
  Audio Compression standard	G711A
  Alarm
  Sensor Input	NO
  Output	NO
  Motion Detection	8 Channel, MD Zones: 396 (22 × 18)
  Intelligent detection

Διαστάσεις

• Μήκος (mm): 260.00
• Πλάτος (mm): 215.00
• Ύψος (mm): 46.00
